Planetary Gearmotors

The type -60P PMDC and brushless DC planetary gearmotors deliver high continuous and peak torques in a compact package. These 60mm gearmotors are available with rated speeds up to 658 rpm, rated torque from 5 to 226 lb-in (up to 26 Nm), gear ratios from 4:1 to 162:1, and 90/130, 130, 24, and 12 VDC windings. Our low-voltage models are ideal for solar or battery powered mobile applications, portable medical devices, and many other off-grid applications.

  • Up to twice the torque of similar size helical/spur gearmotors.
  • Environmental protection: PMDC models meet IP-66 (with optional shaft seal kit installed). BLDC models meet IP-44 (max).
  • BLDC models are encoder-compatible with optional shaft kit (model 0964).
  • BLDC models require a brushless DC control set for 120° commutation angle.
  • High-performance grease lubrication. Mount in any orientation.
  • Standard backlash < 60 arc minutes.
  • Low-voltage models feature metric mounting and drive shaft details.
Main components of a typical planetary gearhead
Main components of a typical planetary gearhead

Permanent Magnet DC

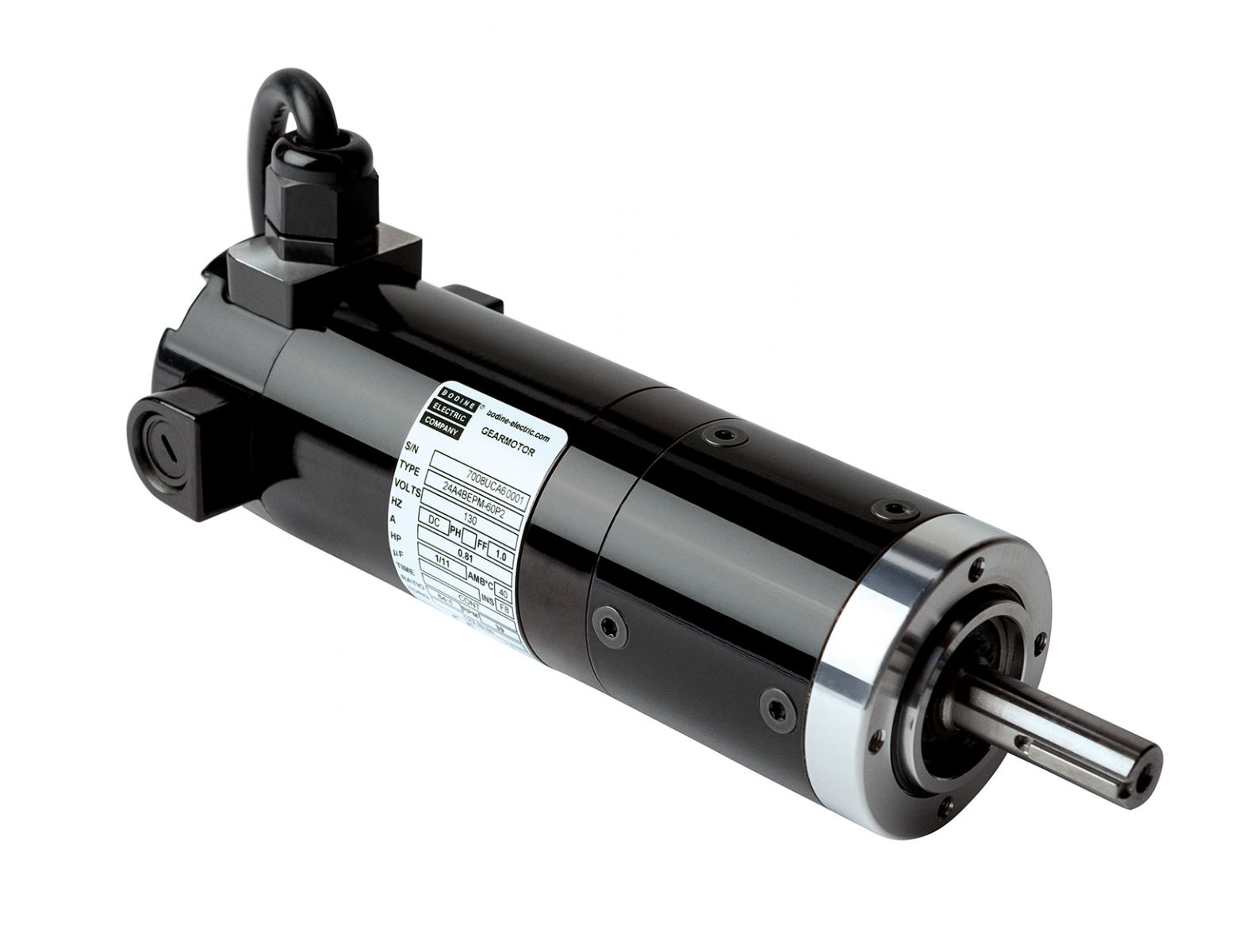

Type 24A-60P Gearmotor




Brushless DC (EC)
Type 22B-60P Gearmotor

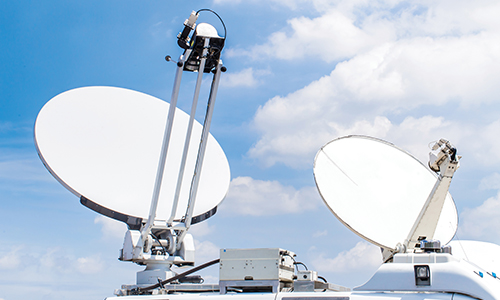

Satellite Tracking Equipment
Satellite Tracking Equipment
Mobile/Outdoor Camera Systems
Mobile/Outdoor Camera Systems
Medical Applications
Medical Applications

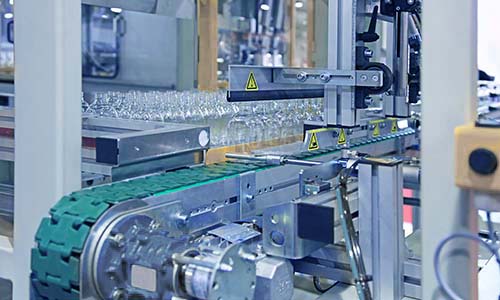

Industrial Conveyors
Industrial Conveyors

Bodine low-voltage PMDC or BLDC (EC) planetary gearmotors are ideal for applications such as mobile antennas or satellite dishes, solar- or battery-powered outdoor cameras, medical applications such as adjustable hospital beds, low profile industrial conveyors, mobile warehouse equipment, and many other off-grid drive applications.
