Hypoid Gearmotors from Bodine - AC, PMDC, BLDC

Hypoid Gearmotor Cutaway
Cutaway showing the gearing a of Bodine Hypoid Gearmotor

We now offer AC, permanent magnet DC and brushless DC (EC) hypoid gearmotors. These gearmotors' high torque and efficiency make them an ideal drive solution for applications such as conveyors, gates, packaging and other industrial automation equipment that require compact size, lower energy consumption and cooler operation.

Right-angle gearmotors with hypoid gear sets have several advantages over standard worm and worm-gear gearmotors. While they cost more to manufacture, hypoid gearmotors are more efficient, produce less heat, provide higher torque, and are usually smaller than equivalent gearmotors with worm- and worm-gear reducers.

AC Hypoid Gearmotors Type 42R-25H2 and 42R-30H3

Bodine Hypoid Gearmotors
Speed (RPM) Torque Lb-in (Nm) Power Hp (Watts) Gear Ratio
Up to 340 Up to 2,328 (236) 1/3 (245) 5:1 to 240:1

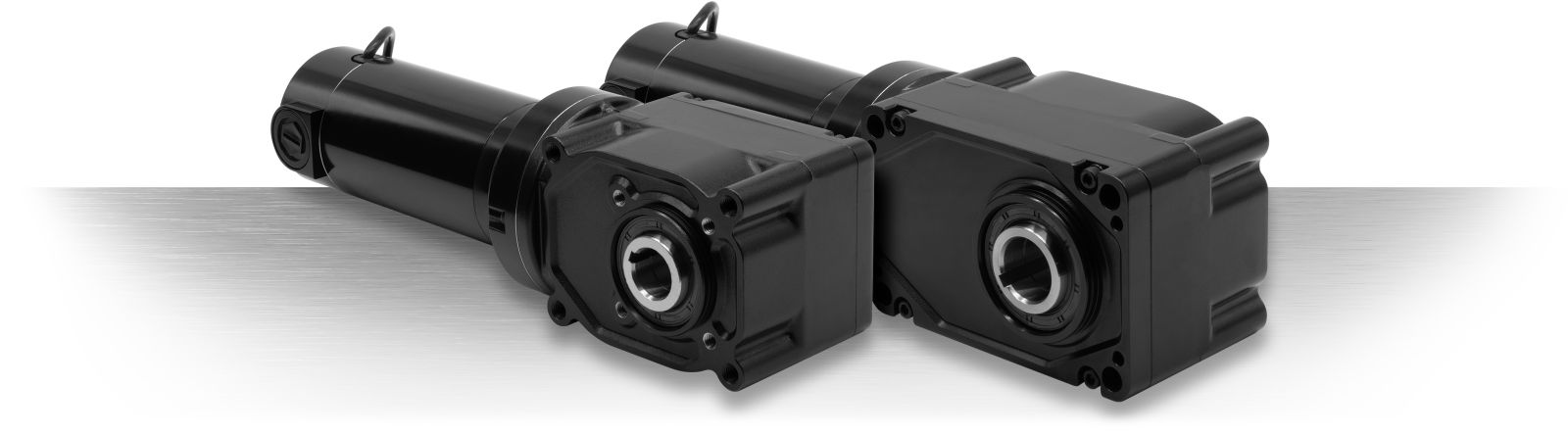

PMDC Hypoid Gearmotors Type 33A-25H2 and 33A-30H3

Bodine Hypoid Gearmotors
Speed (RPM) Torque Lb-in (Nm) Power Hp (Watts) Gear Ratio
Up to 500 Up to 1,535 (173) Up to 1/3 (245) 5:1 to 240:1

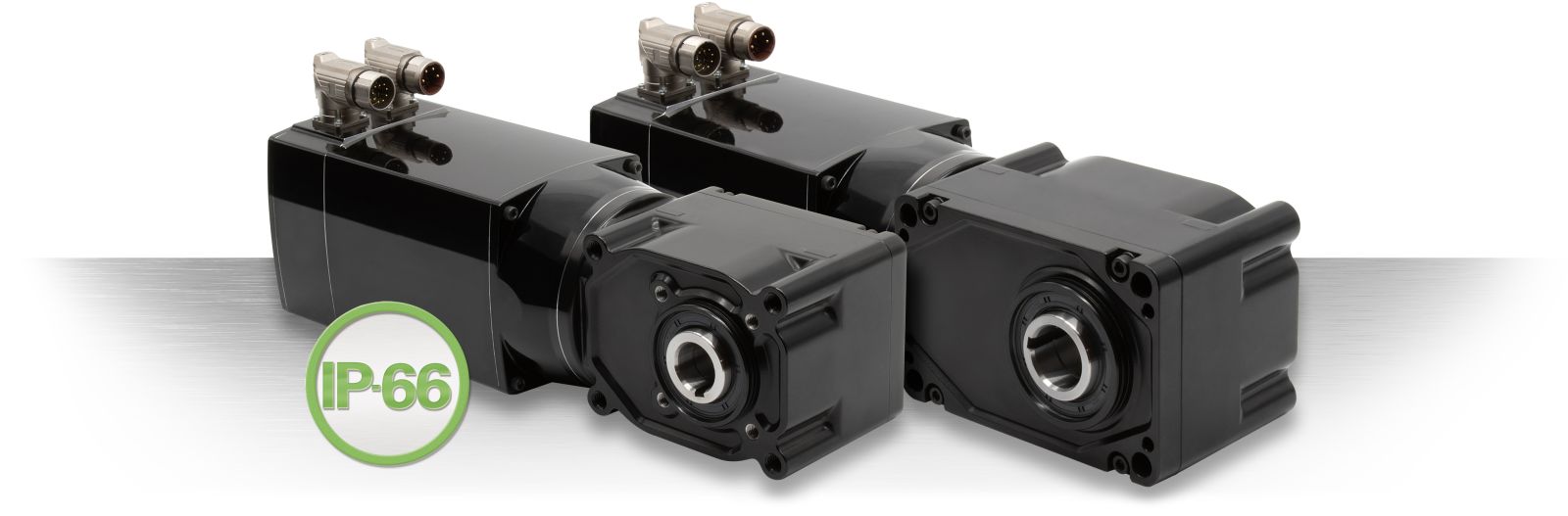

Brushless DC (EC) Hypoid Gearmotors Type 42B-25H2 and 42B-30H3

Bodine Hypoid Gearmotors
Speed (RPM) Torque Lb-in (Nm) Power Hp (Watts) Gear Ratio
Up to 400 Up to 2,370 (268) 1/2 (368) 5:1 to 240:1

Low-Voltage PMDC Applications:

Hypoid Application - Beverage Conveyor
Hypoid Application - CT Scan
Hypoid Application - Solar Panels
Hypoid Application - Industrial Piping

Power management is critical in many low-voltage applications. That’s why Bodine’s new low-voltage Hypoid gearmotors were designed with battery and solar power use in mind. Whether it is agricultural equipment, a warehouse automation robot (AGV or AMR), a portable medical device, or a chemical injection pump in a remote gas or oil field, we’ll make sure you get the performance you need. Our new high-torque, high-efficiency type 33A7-25H2 and 33A7-30H3 hypoid hollow-shaft gearmotors are an ideal solution for low-voltage applications.
