24A Series Permanent Magnet DC Motor

Model 0043

Bodine Electric, 0043, 2500 Rpm, 1.5000 lb-in, 1/17 hp, 130 dc, 24A Series Permanent Magnet DC Motor

SPECIFICATIONS

Speed (rpm) 2500
Rated Torque (oz-in) 24
Rated Voltage 130VDC
Current (Amps) 0.48
Motor HP 1/17
KT (oz-in/A) 55
KE (V/krpm) 40
Winding Resistance (ohms) 51
Winding Inductance (mH) 84
Rotor Inertia (oz-in-sec) 0.007
Radial Load (lbs) 25
Length XH (inch) 4.68
Weight (lbs) 3.4
Product Type 24A4BEPM
Accessory Shaft NO
Connection Diagram 07410101

STANDARD FEATURES

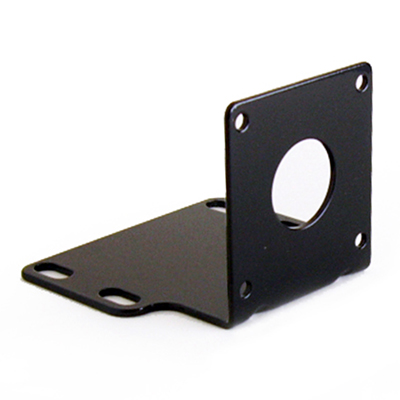

  • Models 0042 and 0049 include a factory-installed base for foot mount.
  • Totally enclosed non-ventilated (IP-40).
  • External brush access for easy inspection and replacement.
  • Oversized brushes for long life.
  • Pre-seated graphite or copper-graphite brushes for optimum performance and quiet operation.
  • Skewed armature for smooth low speed operation.
  • Oversized magnets resist demagnetization, stabilized to common strength for consistent performance.
  • High starting torque and self-braking.
  • Noise-tested ball bearings permanently lubricated.
  • Locked bearing minimizes endplay.
