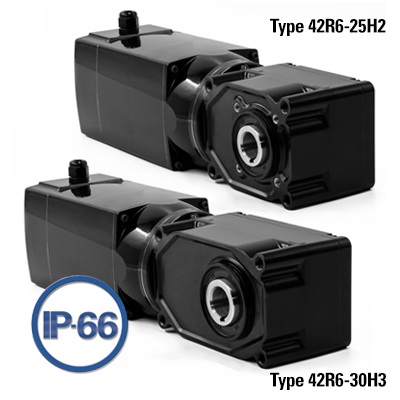

25H2 Series AC Right Angle Hollow Shaft Gearmotors

Application Information

· Blog: 42R motor design was a runner-up in DESIGN WORLD's 2024 LEAP Awards

· Seven gear ratios: 5:1 to 60:1

· 1-inch hollow shaft bore size.

· Face mount via four tapped holes or through-bolts.

· Unvented gearhousing mounts in any orientation.

· More efficient than similar-sized worm-gear models.

· IP-66 protection against water ingress and dust.

· Motor can be terminated in end shield. Optional Terminal box kit available

· (1) plastic shaft cover included with each gearmotor.

Optional Accessories

STANDARD FEATURES

· Class "F" insulation and ratings; Rated ambient temp: +40°C.

· Permanently lubricated, noise-tested, sealed, ball bearings.

· Hardened steel gears for long life and maximum performance.

· Hollow shaft eliminates need for shaft couplings and extra mounting hardware.

· Seven gear ratios: 5:1 to 60:1 with 1-inch hollow shaft bore size. One plastic shaft cover is included with each gearmotor.

· Face mount via four tapped holes or through-bolts.

· Unvented gearhousing mounts in any orientation.

· High-performance Grease. Gearmotors are lubricated for life.

· More efficient than similar-sized worm-gear models.

· Motor can be terminated in end shield. Optional Terminal box 0988 is available.

· IP-66 protection against water ingress and dust (with PG11 fitting and cord installed).
