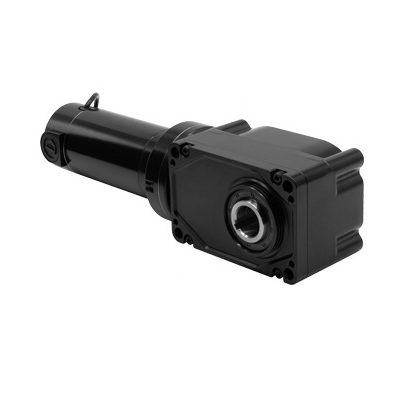

30H3 Series DC Right Angle Hollow Shaft Gearmotors

Application Information

· Performance ratings of 130V models are based on use with filtered SCR or PWM speed controls (Form Factor = 1.0). Performance ratings of 90V models are based on use with unfiltered SCR speed controls (Form Factor = 1.4).

· 1.25-inch hollow shaft bore size.

· Face mount via four tapped holes or through-bolts.

· Unvented gearhousing mounts in any orientation.

· More efficient than similar-sized worm-gear models.

· Optional base/foot mount brackets – model 0959.

· (1) plastic shaft cover included with each gearmotor.

Optional Accessories

STANDARD FEATURES

· 33A Motor provides high starting torque, adjustable speed, and predictable performance under a range of operating conditions. TENV.

· Class “F” insulation and ratings

· Pre-seated motor brushes for optimum performance and quiet operation

· Hardened steel gears for long life and maximum performance

· Hollow shaft eliminates need for shaft couplings and extra mounting hardware

· 1.25-inch hollow shaft bore size. One plastic shaft cover is included with each gearmotor.

· Face mount via four tapped holes or through-bolts.

· Unvented gearhousing mounts in any orientation. High-performance Grease. Gearmotors are lubricated for life.

· More efficient than similar-sized worm-gear models

· Encoder-compatible with new optional screw-in encoder shaft kit model 0964. (Standard/stock models supplied with factory-installed cover over shaft opening).
