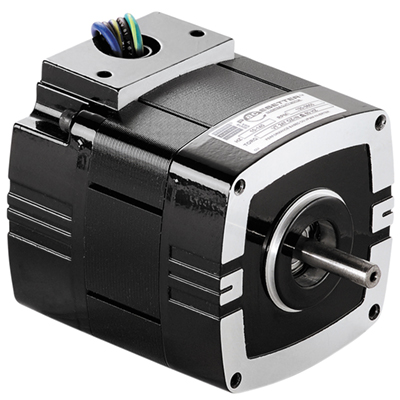

Metric 30R Series AC Motor
Model 1319
SPECIFICATIONS
| Speed (rpm) | 2850 |
| Rated Torque (Nm) | 0.06 |
| Rated Torque (oz-in) | 9 |
| Power (Watts) | 19 |
| Power (HP) | 1/39 |
| Voltage | 230 |
| Hz | 50 |
| Phases | 1 |
| Amps | 0.38 |
| Radial Load (N) | 80 |
| Radial Load (lbs) | 18 |
| Length XH (mm) | 93.7 |
| Length XH (inch) | 3.69 |
| Weight (kg) | 2.1 |
| Weight (lbs) | 4.6 |
| Connection Diagram | 07410021 |
| Capacitor Part Number | 49400091 |
| Product Type | 30R2BECI |
| HPDecimal | 0.0256 |
CAD Drawings
Wiring Diagram
Optional Accessories
L-Bracket Kit for Metric type 30R, 33A, 30R-D, 24A-D, 24A-Z Products [model 1968]
Die cast metric terminal box with terminal block for 30R motors and gearmotors [model 1982]
Capacitor; plastic box type; 1.3 MFD / 450V [Item 49400091]
L-Bracket Kit for 30R and 33A motors, 30R-D, 22B-D, 22B-Z, 24A-D, 24A-Z, and 33A-Z gearmotors [model 5968]
Die cast terminal box for 30R motors and gearmotors [model 5982]
STANDARD FEATURES
- Metric mounting threads and metric drive shaft dimensions.
- Totally enclosed, non-ventilated IP-20 rating.
- Class "B" insulation system for long life.
- Aluminum endshields for high thermal efficiency and light weight.
- Permanently lubricated, noise tested ball bearings.
- Locked bearing design minimizes shaft endplay.
