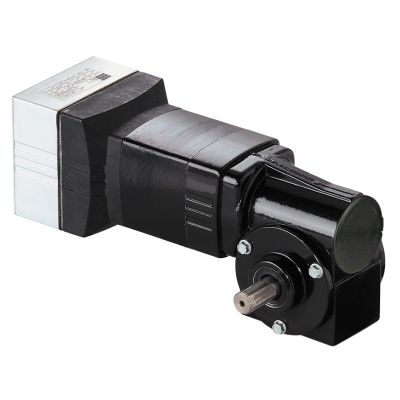

22B/FV-3N Series INTEGRAmotor BLDC Right Angle Gearmotor

22B/FV-3N Series INTEGRAmotor BLDC Right Angle Gearmotor

Application Information

  • Integral 24VDC voltage mode PWM controller simplifies installation, minimizes EMI, and reduces wiring cost.
  • Featuring PWM voltage control, amplifier enable, direction and dynamic braking inputs. Fault signal output.
  • Built-in 256 PPR, two channel quadrature, optical encoder (total 1024 counts/rev).
  • Can operate in velocity or position control mode.
  • Single plug-in connector for power and logic.
  • Internal current limit protects motor from short-term overload.
  • Integral gear reducer increases torque and reduces speed.
  • Worm gearing for high strength and quiet operation.
  • Higher gear ratios provide self-locking to hold load in place.
  • Grease lubrication for long life and flexible mounting positions.
  • Output torque ratings chosen for long, reliable life.
  • Totally enclosed motor construction.
  • Small size takes up minimal space.
  • cURus, CE
